- Place of Origin: ZHEJIANG
- Brand Name: liqi
- Model Number: LQ-GYC

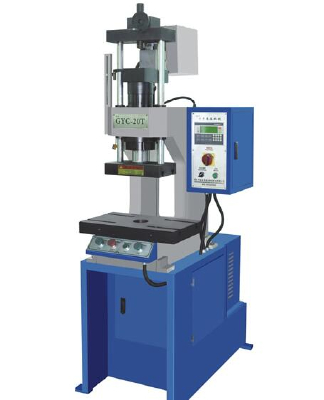

LQ-GYC features:
1, advanced functions
A, fast - slow fast forward the work into a rapid return.
B, with the function of holding pressure, can adapt to a variety of technical requirements.
C, high precision, low noise, low failure rate.
D, stroke adjustment is convenient and reliable.
E, high security
2, fast
Working frequency is close to the mechanical press
3, the outline structure and mechanical general press similar
The working table, opening height and stroke, etc. are all inclusive of the mechanical type universal press data, which can be exchanged. Therefore, the high speed hydraulic press will be the mechanical general press the renewal product.
LQ-GYC application area:
This series of products applicable to sheet metal stamping, molding, calendering, confined installed plastic sheet shallow drawing process.
Technical parameters
project
Company
Model: LQ-GYC
10T
20T
63T
Master cylinder
Male weigh strength
KN
One hundred
Two hundred
Six hundred and thirty
return force
KN
Nine
Thirty
Seventy
Trip
Mm
One hundred and twenty
Two hundred
Two hundred and forty
Opening height
Mm
Two hundred and forty
Four hundred
Four hundred and eighty
Movable table
Rapid feed rate
Mm/s
Three hundred and twenty
Three hundred and twenty
Two hundred and eighty
Working speed
Mm/s
Sixteen
Fifteen
Eighteen
Return speed
Mm/s
Three hundred and eighty
Four hundred
Three hundred
Effective area of the working table
About
Mm
Three hundred and twenty
Six hundred
Seven hundred
around
Mm
Two hundred and forty
Four hundred
Four hundred and sixty
Die size
Mm
Thirty
Forty
Fifty
Motor power
KW
One point one
Two point two
Four
