Functional characteristics of the product

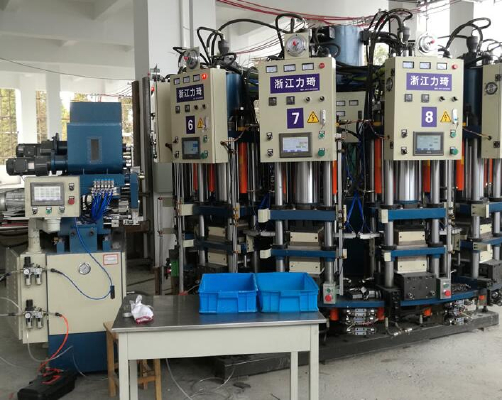

1: the host for the 10-12 station turntable type, each station has a separate operation of the process; each station has a working chamber 1-2. Each station, each working chamber can produce different types of products.

2: attached to the machine has a set of automatic weighing, automatic feeding and automatic push the bottom mold system; a set of hydraulic drill and control box.

3: complete set of equipment only 1 people to operate (take the finished product, put the steel back and powder leveling.

4 automatic feeding, automatic weighing, automatic feeding, automatic pressing, manual take steel back, artificial leveling, manual labor.

technical parameter

1: the maximum pressure of a single station P=63T.

2: single station master cylinder maximum stroke 350mm.

3: lock in the maximum pressure of the cylinder 3T, the maximum stroke 150mm.

4: maximum opening height 520mm.

5: medium die size mm. 300X220X100

6: dial diameter o 3000--3500 mm.

7: working cycle 6-8 minutes.

8: the total quality of the equipment is about 20000Kg.
